Tacoma Trail-Link Front 3-Link Kit. Continuing with the line of Trail-Link kits, Trail-Gear has developed a Front 3 link kit to work with 1995-2004 Toyota Tacomas. This kit is affordable, user friendly, and strong. The Panhard is 1.25 Inch x 0.250 Inch wall DOM material, the other link material is 2.0 Inch by 0.250 Inch wall DOM tubing.
The rod ends are 1.25 Inch Creeper Joints. The Panhard bracket on the axle is 0.1875 Inch thick and all other brackets are 0.25 Inch steel, formed and welded. Kit includes all necessary link hardware except for upper shock mounts.
Upper shock mount location is determined based on the desired ride height and needs of the vehicle. This kit is designed to work with our True Tacoma width Left Hand Drive Rock Assault axle 140312-1-KIT and high steer.
Trail-Gear offers four different Tacoma four 3-Link Suspension kits. We feel that offering a selection allows the customer to pick the kit that is best suited and priced for their unique build. All gussets and frame supports are included, so the Tacoma will be much stronger when you finish than it was from the factory.
These kits are built by Tacoma owners, for Tacoma owners. If you have any questions you can call our technical support line with confidence that you will be speaking with a fully trained professional, who will assist you with any questions that you may have during your installation.
All gussets and frame supports are included. Most complete kit on the market. If you have a 3.4L engine, you may need to replace your radiator. See steps 116-120 of the instructions for more information.
Components Needed For Complete Build:
- 2x Toyota Solid Axle Spindles
- 2x Brass Spindle Bushings
- 2x Toyota Solid Axle Hubs
- 2x Aisin Locking Hub or 1 Creeper Flange Kit
- 1x Super Metal Hub Stud Kit
- 1x Super Metal Spindle Stud Kit
- 12x Front Wheel Studs
- 12x Toyota Lug Nuts
- 1x Steering Stop Kit
- 1x Set of Wheel Spacers may be required with some rims to clear the brake calipers
3-Link Includes:
- TG Shock Mount Kit
- Lower Link Mount
- Upper Axle Link Bracket
- Panhard Brackets
- Driver-side Front Frame Bracket
- Passenger-side Front Frame Bracket
- Panhard Bar
- 3x Right Hand and Left Hand Creeper Joints with Bungs
- 2x Rod Ends with Bungs
- Misalignment Spacers
- Shock Straps
- Link
- 3-hole gussets
Kit A Includes:
- Everything in Tacoma Trail-Link Front 3-Link Kit
- Front Frame Reinforcement Plates with IFS Box
- Mount Kit
- Steering Shaft
- Steering Couplers
- Firewall Plate

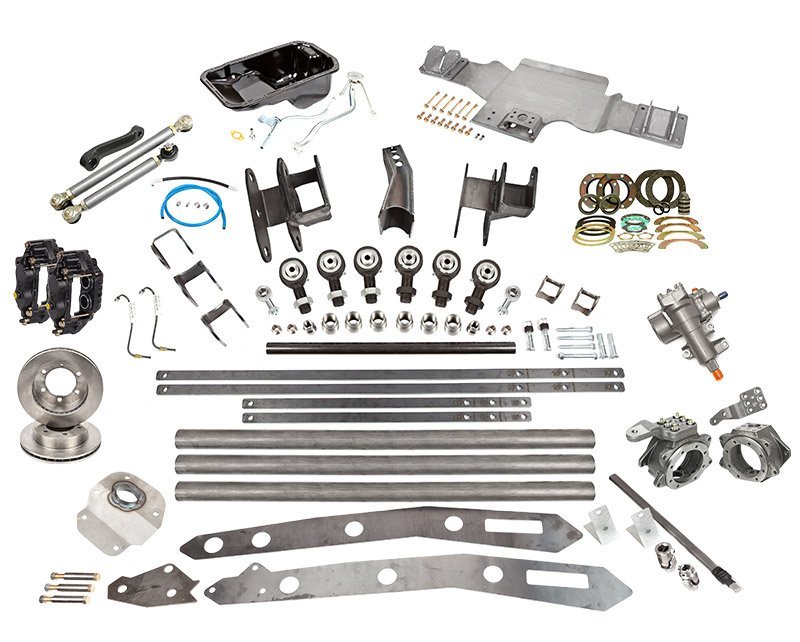

Kit B Includes:
- Everything in Tacoma Trail-Link Front 3-Link Kit A
- Front Extended Brake Lines
- Fully Loaded Calipers
- Caliper Hard Lines
- Vented Brake Rotors
- Knuckle Service Kit with Wheel Bearings
- Tacoma High Steer Kit
- Fully Loaded Six Shooter Knuckles
- Knuckle Hardware
- 86-88 IFS Steering Box
- Oil Pan Kit 2.7L or 3.4L
- Power Steering Hose Conversion Kit
- Single T-Case Crossmember
Specs:
- Warranty: 12 Month Limited Warranty
- Sold As: Kit
- Kit: B
- Material: Steel
- Finish: Bare
- Color: Grey
- Year: 1995
- Size: 2.7L
- Location: Front
- Link: 3-Link
- Fits: Toyota Tacoma
