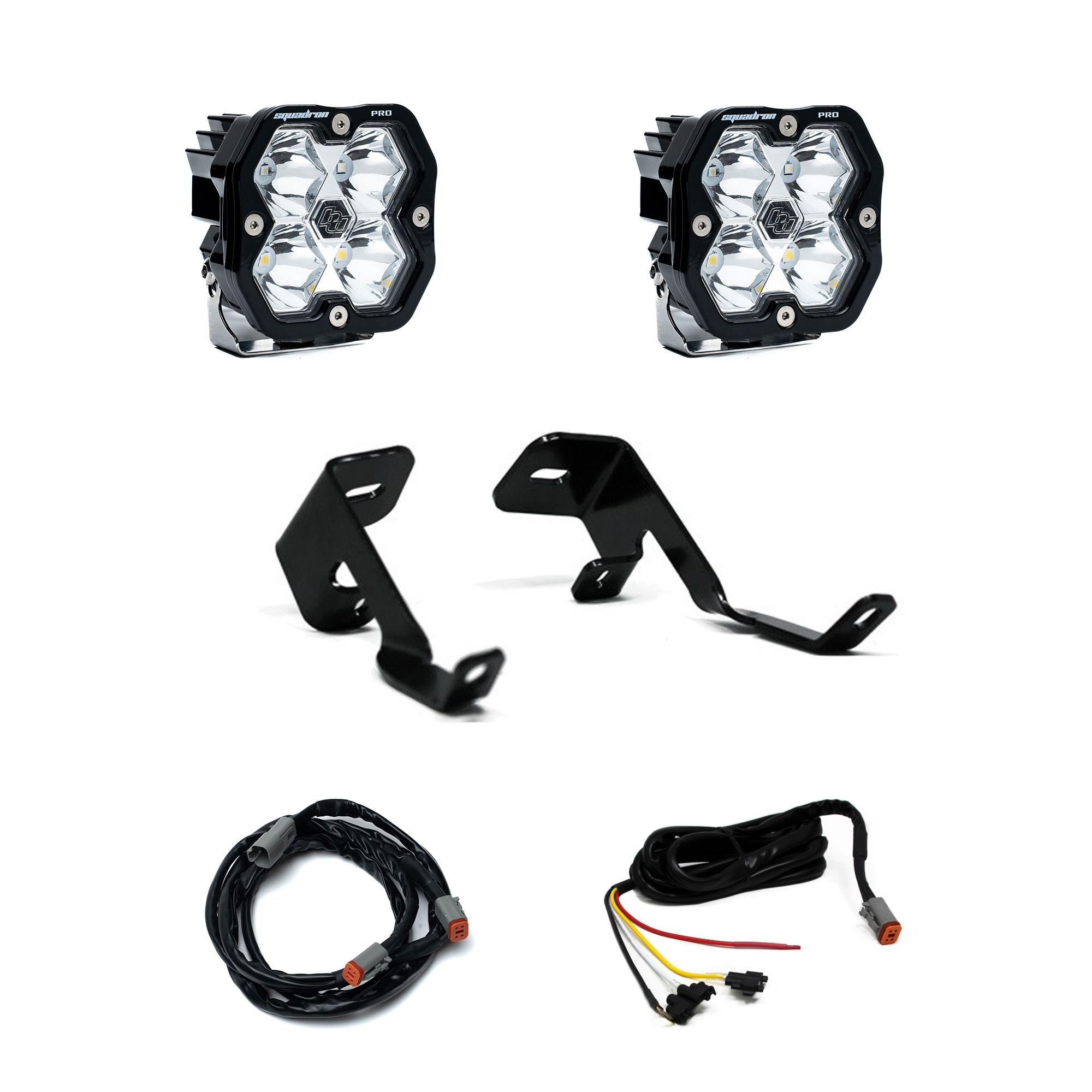

Squadron 2.0 Pro A-Pillar LED Light Kit for the Ford F-150 and F-150 Raptor models puts serious light exactly where you need it. Ditch lights done right, this kit comes with custom-engineered mounting brackets designed specifically for the 2015-2020 Ford F-150 and 2017 - 2020 F-150 Raptor, making installation straightforward - everything needed for a clean, secure setup is in the box. Squadron 2.0 Pro delivers 5,921 lumens at 65W per light - a 21 percent performance increase over the previous generation.

The redesigned optics and updated lens patterns improve beam control, pushing more usable light further down the trail where it counts. Squadron 2.0 Pro as easy to maintain as it is to run hard. A newly engineered universal mounting bracket design adds increased adjustability, so you can dial in your aim for maximum field of view and spot obstacles before they become problems.

Swap lenses in the field with ease and stay protected against the elements no matter what conditions you push through. Squadron 2.0 Pro A-pillar kit gives your Ford F-150 and F-150 Raptor the lighting upgrade it deserves. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty.

Squadron 2.0 Pro Features:

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• User selectable backlight with 9 colors to match any vehicle
• New clip-in reflectors stay secure during lens changes, improving uService
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4-pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Pro Specifications (Per Light):

• Lumens: 5,921
• Watts/Amps: 65W/4.7A

The Baja Designs Advantage:

• Satisfaction Guarantee - 30-Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses and Optics
• ClearView - All the Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Safely Driving LEDs at 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

• Specifications:
  • Brightness (Lumens): 5,921 lm
  • Amperage Rating (A): 65W / 4.7A at 13.8V*
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: Backlight: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
