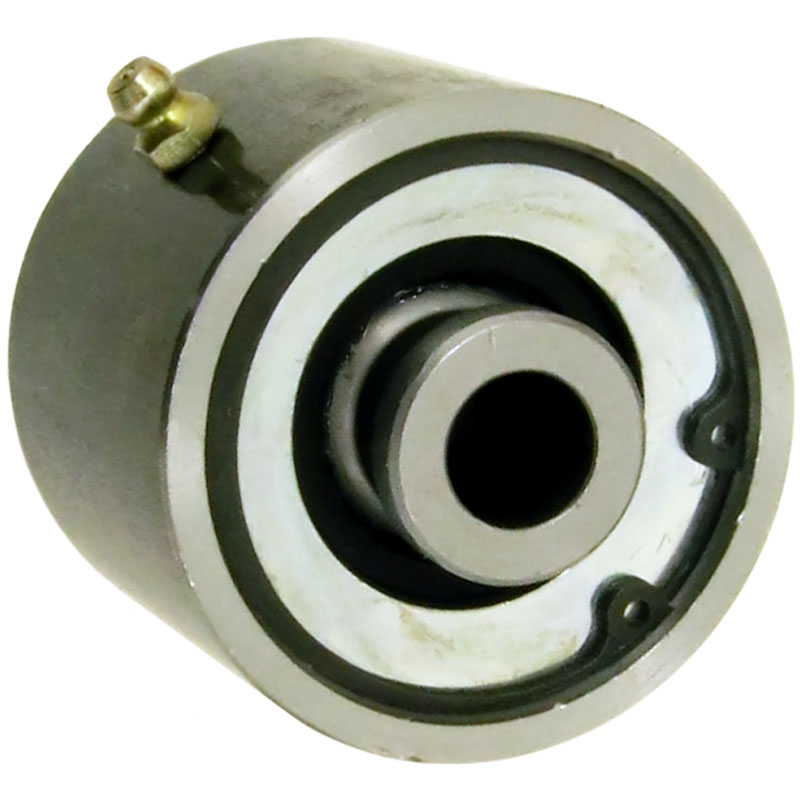

Johnny Joint Rod End 2 1/2 Inch Narrow Weld-On 2.360 Inch x .641 Inch Ball Internally Greased RockJock 4X4

RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 2 1/2 inch narrow style outer shell is weldable CNC machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint features a 2.360 inch mounting width ball with a .641 inch thru hole.
