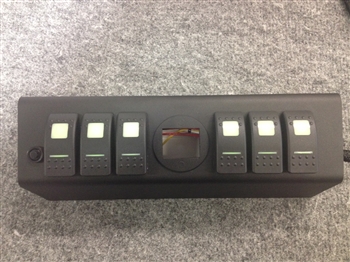

JK 6 Switch Panel with Dual Lit LED Blue Switches W/Genesis Adapter 09-18 Wrangler JK (G Screen Not Included) sPOD

JK 6 Switch Panel with dual lit LED Blue switches for 2009-2018 JK Wranglers W/Genesis Adapter G Screen not included.

This panel includes the new Genesis adapter to allow you to install the Genesis G Screen.

Each system includes the following:

• All required mounting brackets and hardware.
• System will come pre-wired ready to install.
• G Screen not included.

Included:

• Switch panel, six with dual lit LED Blue switches (installed and pre-wired).
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50 amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
• Fuse for LVCO which can be removed to bypass the LVCO
• Mounting bracket for Jeep Wranglers
