Jeep JL 1350 Heavy Duty Rear Driveshaft 18-Pres Wrangler JL Manual Transmission Reel Driveline

Heavy Duty JL 2018-Present Powertrain is installed at 9.25 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

Details:

• Collapsed Length 43.875
• Ride Height 45.375 inch
• Extended Length 46.875 inch
• U Joint Style 1350 W/O ZERK
• Tube size 3.00X.083 Inch
• Pinion/Yoke 2-4-3124R
• T/C Yoke 2-4-5341-10R

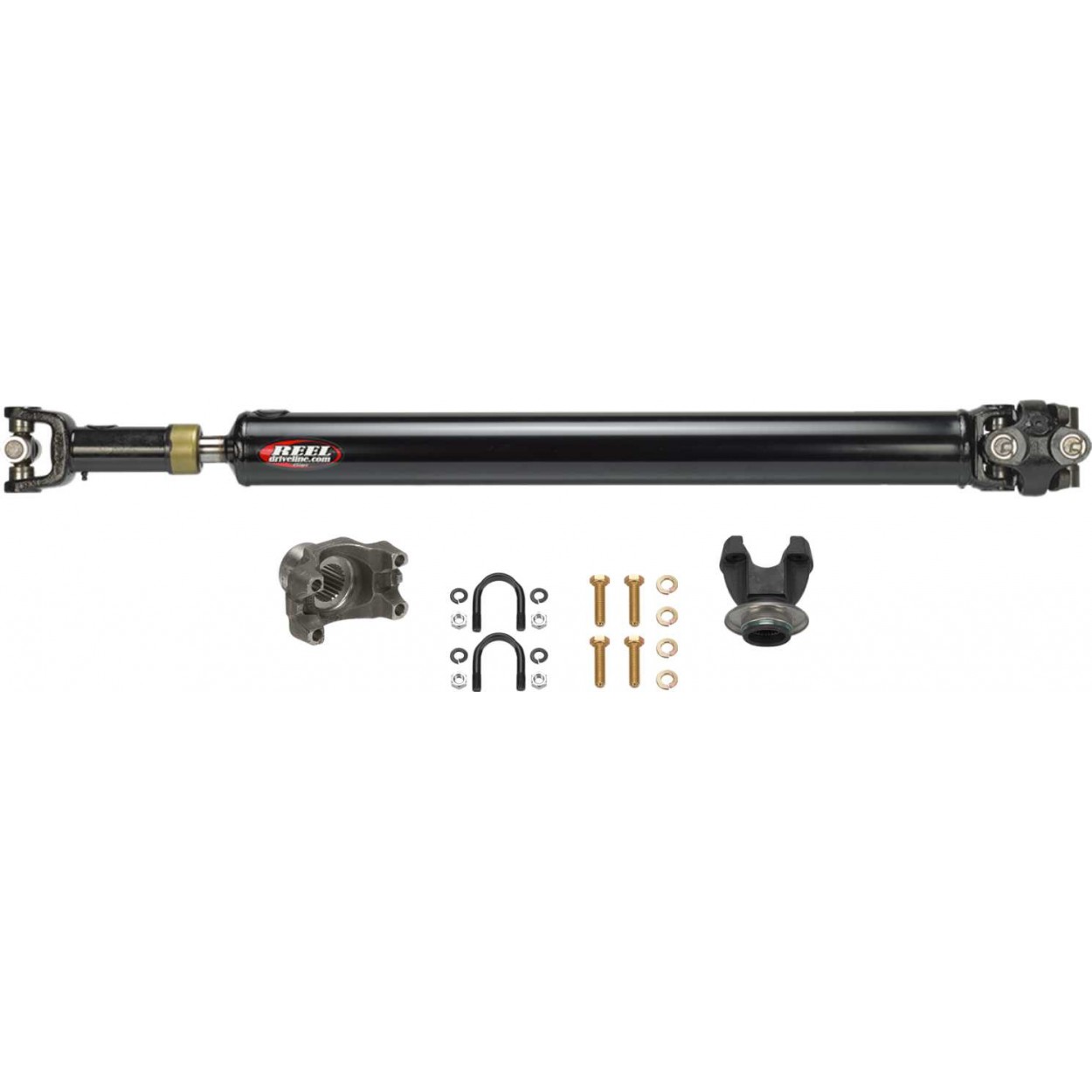

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included
