Jeep JK OE Style Rear Driveshaft Automatic Transmission 07-11 JK 4 DR Reel Driveline

This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use only. At 35 inch tires it is strongly recommended to use the 1350 drivelines.

2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.5 to 4.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length. It's best to measure all drivelines if possible.

The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.

JK 2007-2011 Powertrain is installed at 6 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

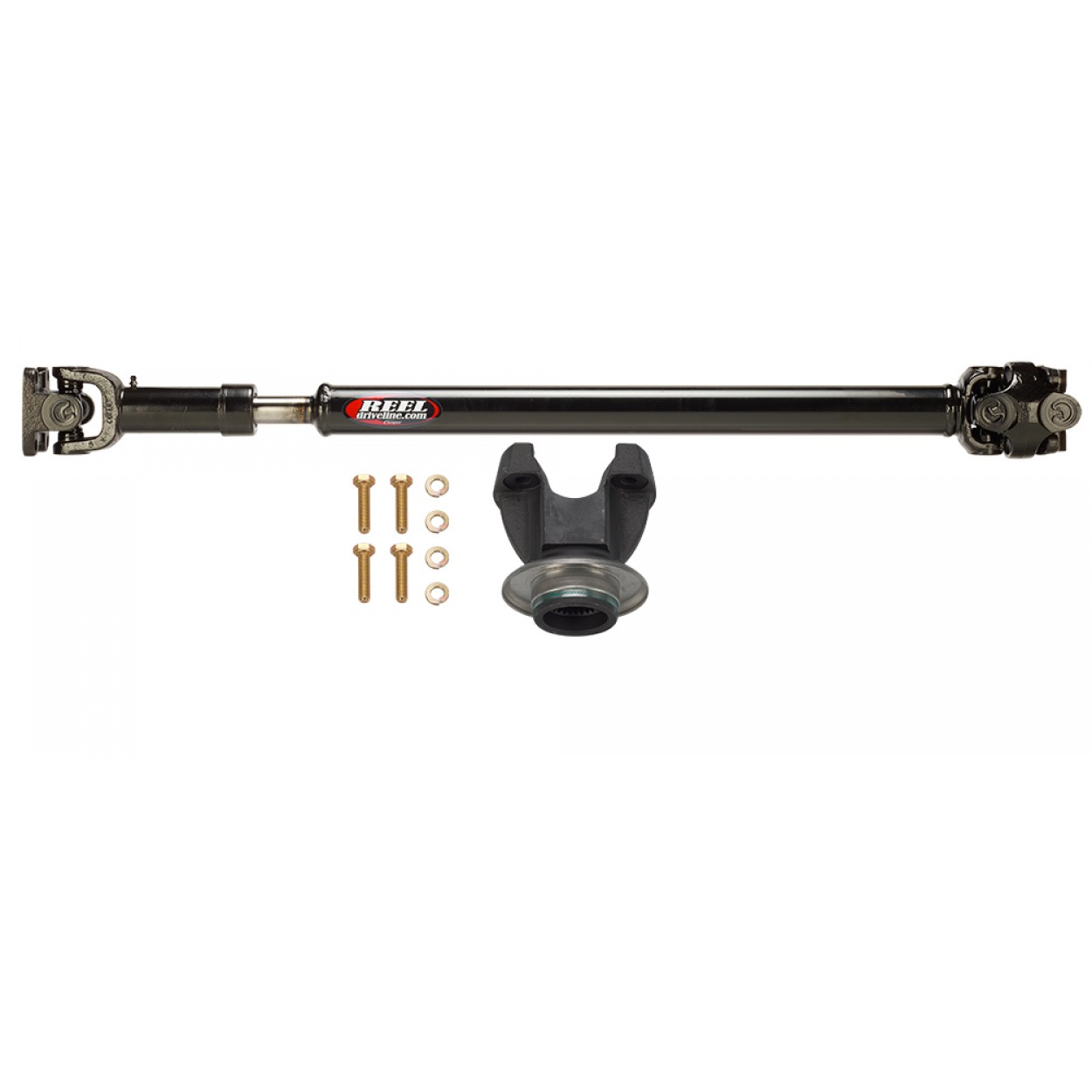

Kit Includes:

• 2 inch x.120 Tubing
• 1310 U-Joints
• Cast U-Bolt Style Yoke
• 1310 U-bolts
• T/C Yoke
• Grade 8 Hardware
• Installation Instructions
