Jeep Gladiator 1350 Heavy Duty Rear Driveshaft 20-Pres JT Gladiator Manual Trans 4 Door Reel Driveline

1350 Heavy Duty rear driveshaft for 4 door Jeep JT Gladiator models with an manual transmission. Replacement Driveline. This System is stronger than O.E. type applications recommended for stock to 6 1/2 inch lift.

J.E. Reel Drivelines are designed to work with 2 1/2 inch and 4 1/2 inch lifts from most lift manufacturers. Lifts higher than 4 1/2 inch or long arm lifts must be measured for driveline length. It is best to measure all drivelines if possible.
The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.

Note: JT Gladiator2018 Powertrain is installed at 9.25 Degree. This means the Transfer Case rear output slopes down to rear axle and front output slopes up away from front axle. This model comes with CV and is suitable for lifts above 3 1/2 inch.
Details:

• Collapsed Length 35.75 inch
• Ride Height 28.5 inch
• Extended Length 38.75 inch
• U Joint Style 1350 W/O ZERK
• Tube size 3.00X .083 Inch
• Pinion/Yoke 3-4-3528R
• T/C Yoke 3-1-32R

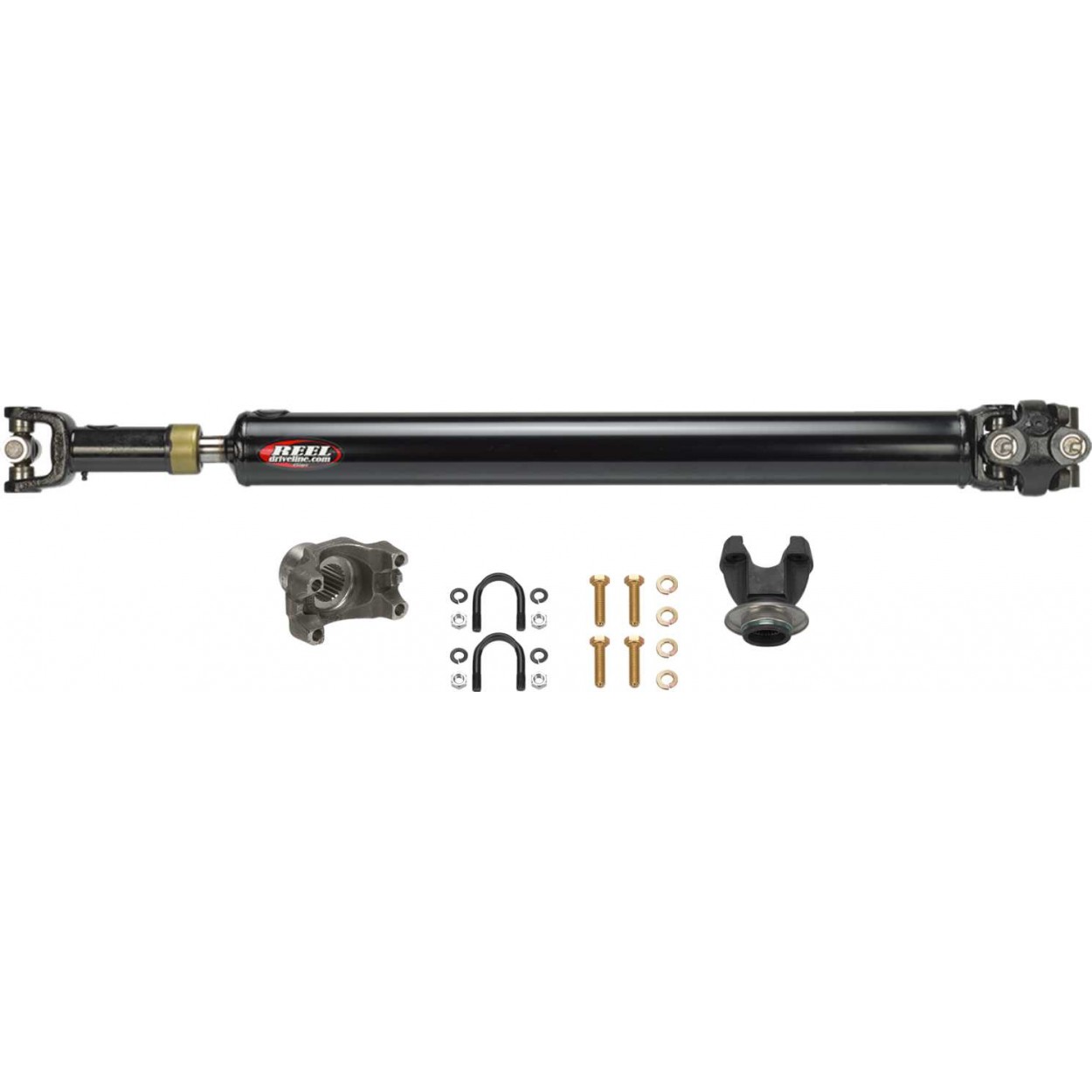

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included
• Center Support Bearing Bracket
