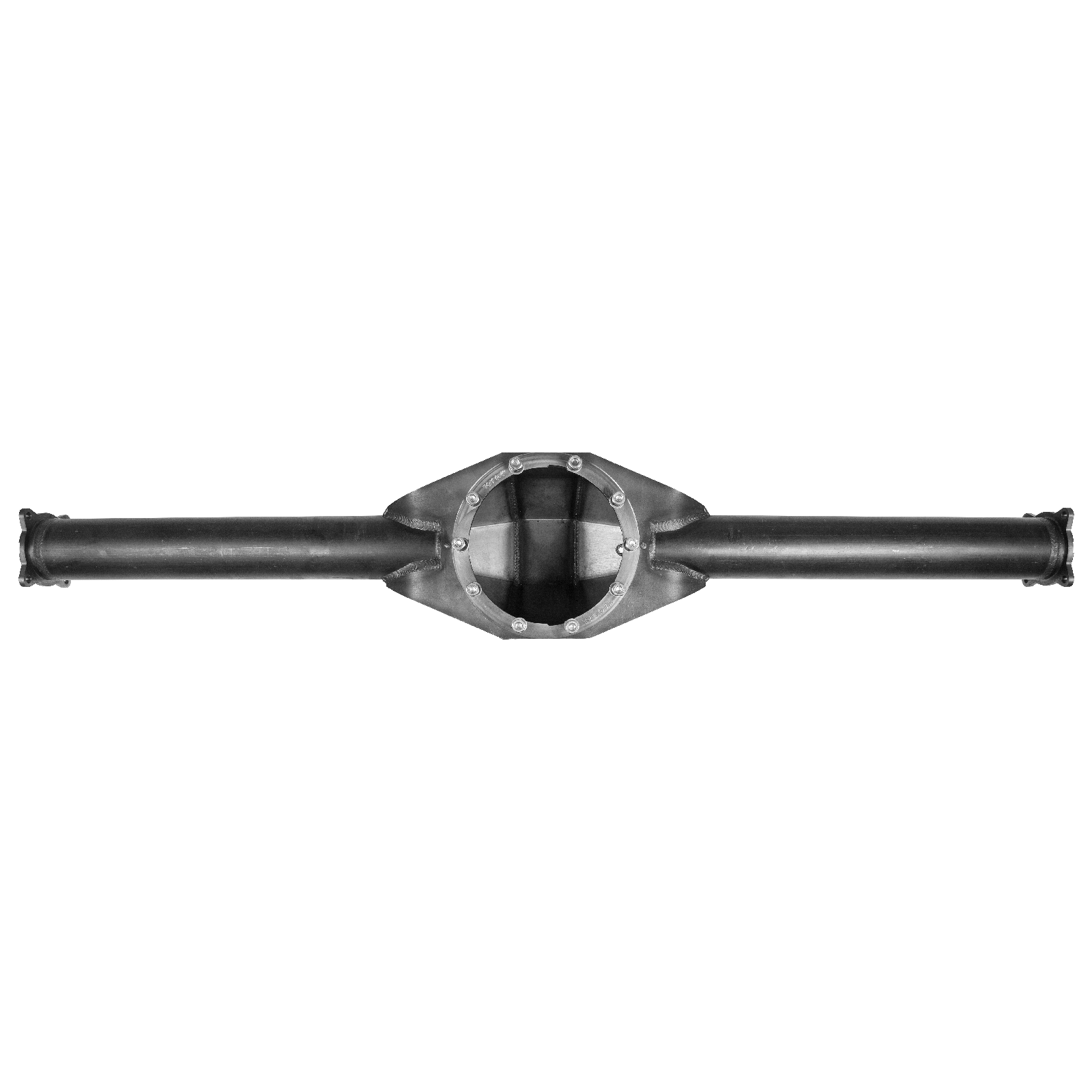

Fabricated 05-15 Tacoma Rear Axle Housing 8.4-inch, 1/4-inch Wall No Inspection Hole Trail Gear

Trail-Gear's Fabricated 2005-2015 Tacoma Axle Housings are available for Toyota 8 inch E-locker, or 8.4 inch differentials. 2005-2015 Tacoma Rear Axle housings come with rear axle flanges welded on at the factory width. This Housing will reuse all factory components including axles and differential. ABS will also still remain functional with this housing.

We started with a 1/4 inch thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi!

All of this is attached to an equally strong 1/2 inch thick faceplate for anchoring the 1/4 inch thick 3.5 inch OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section.

We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
Features:

• Fabricated 05-15 Tacoma Rear Axle Housing 8.4-inch, 1/4-inch Wall No Inspection Hole
• Fabricated 8 inch Elocker, or 8.4 inch Axle housing
• 1/4 inch CNC formed center section
• 1/2 inch Formed faceplate
• DOM axle tube
• 3-point attachment system
• Faceplate is machined after welding to ensure that the differential mounts flush
• Accepts Toyota 8 inch e-locker or Toyota 8.4 inch differential
• Made in USA
• Ships bare
