Style, fitment, performance, and ease of installation. This kit is designed for the Ford Bronco enthusiast that is looking to light up the trail with ample light, and differentiate yourself from the pack.
This kit specifically utilizes a set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Pros in Spot.
The brackets used to mount this performance oriented light setup ensure no cutting or drilling, and the wiring that is included will allow for the lights to be operated from a toggle switch in the cab.
This is a comprehensive kit and does not require any additional parts for installation.
Specifications (Per Squadron Pro):
- Lumens: 4,600 Utilizing 2 Types Of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Sport):
- Lumens: 1,130 Utilizing 2 LEDs
- Wattage/Amps: 12W / .9A
- Dimensions: 2.93 inch x 1.76 inch x 1.68 inch
- Weight: 8 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Dayliht - Less Driver Fatigue, Natural Color
Application:
Ford Bronco (21 - On)

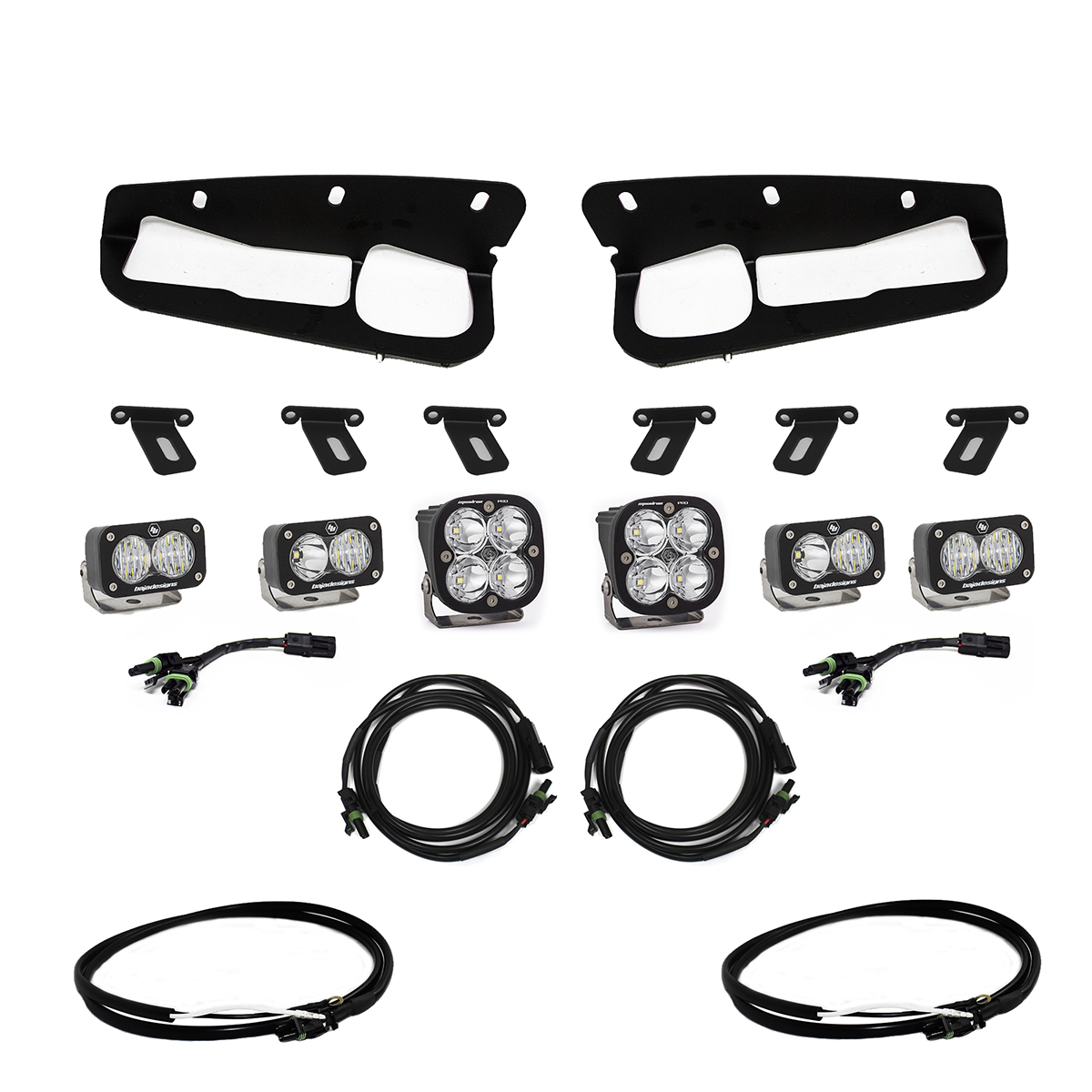

Included:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Wide Cornering Pair
- Squadron Pro, Spot Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter Harnesses
- x2 55 inch Splitters
- x2 small Splitters
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42degree) and spot (9degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Work/Scene: Excellent work light or inchscene light inch with an extremely smooth 120degree circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
