Antirock Double Sheer End Link Bracket Kit for PreRunner Arms Chromoly w/ Hardware RockJock 4X4

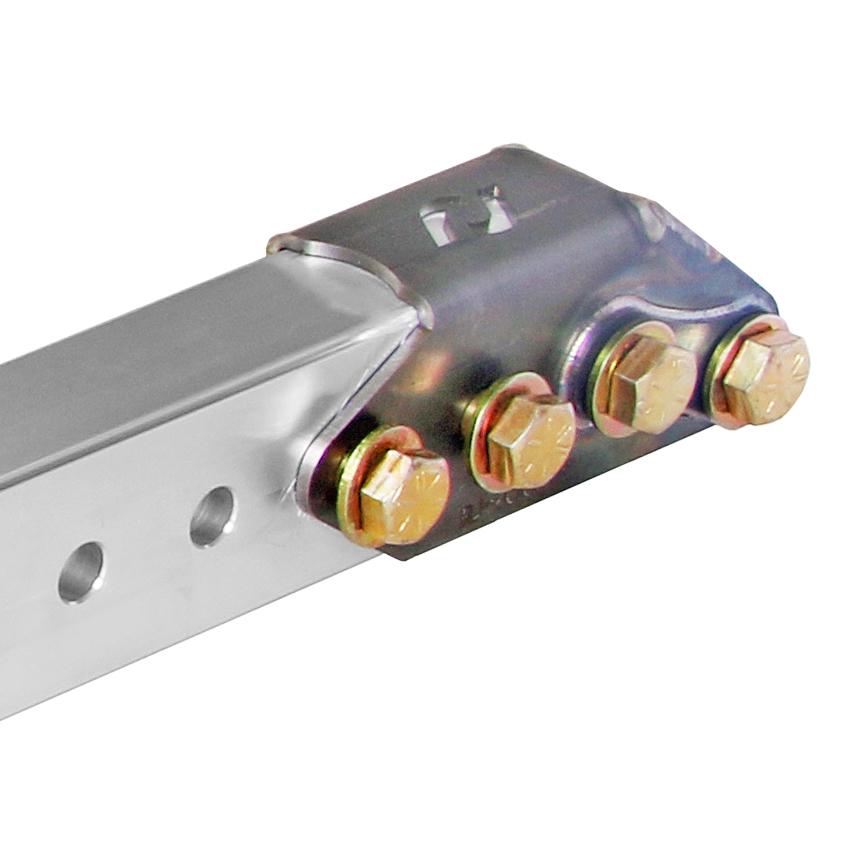

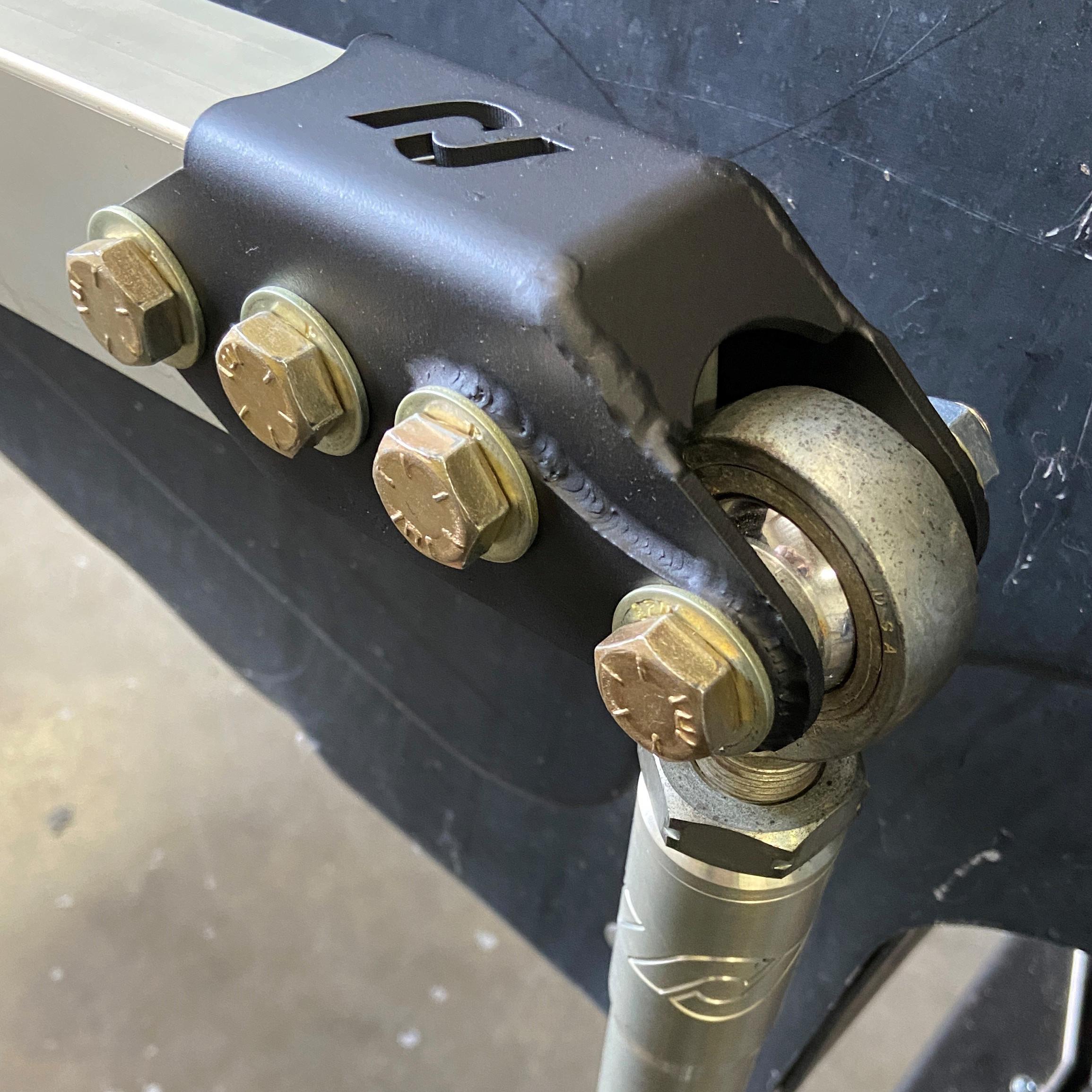

RockJock's Pre-Runner Chromoly Double Sheer End Link Bracket Kit is used in conjunction with their 35 spline Pre-Runner Antirock Sway Bar Arms. These arms bolt to 3 holes on the end of our Pre-Runner Sway bar arms and then provide a fourth hole for mounting of your sway bar link heim joint.

If you end up trimming the length of the sway bar arms, make sure to leave 3 holes available so that you are able to use this easy to install kit. Grade 8 hardware is included, but all heim joint, misalignment spacer and sway bar end link hardware are not included.
Kit Fits:

• RockJock Pre-Runner Antirock Sway Bar Arms (RJ-202005-101)

Kit Includes:

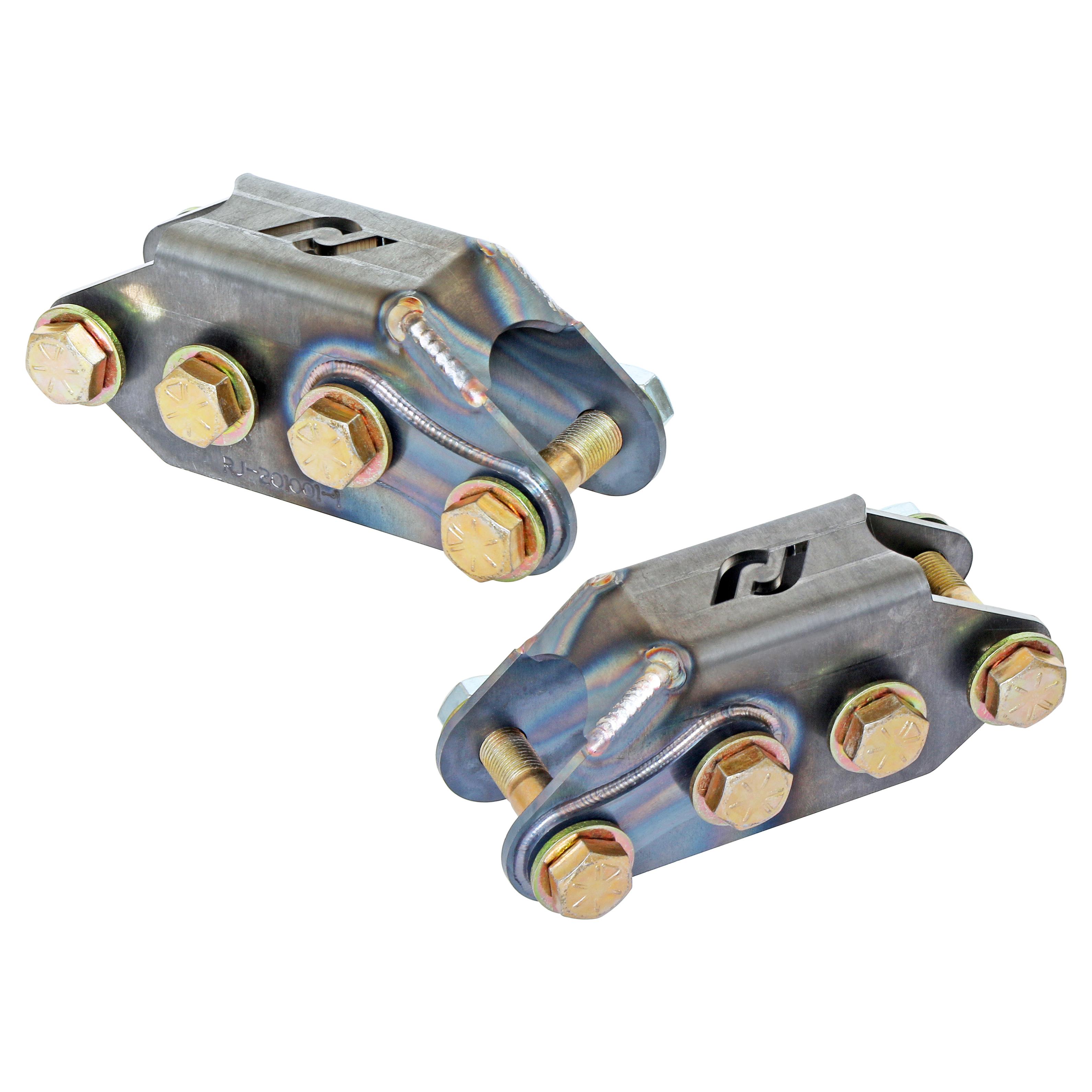

• (2) Chromoly Double Sheer End Link Brackets
• (8) 1/2 inch-20 x 2 3/4 inch Long Grade 8 Bolts
• (16) 1/2 inch Grade 8 Flat Washers
• (8) 1/2 inch-20 Stover Nuts

Notes:

• Fitment - Fits RockJock Pre-Runner Antirock Arms only.
• Installation - These are custom vehicle builder parts. The Sway Bar Arms may require trimming and grinding for installation of these brackets.
• End Links - Again, being that these are custom vehicle builder parts, we do not offer vertical end links or their hardware to be used in conjunction with these brackets.

Kit Includes:

• Double Sheer End Link Bracket: RJ-201001-1
• 1/2 inch-20 x 2 3/4 inch Long Hex Bolt: CE-91257A744
• 1/2 inch Flat Washer: CE-H0014
• 1/2 inch-20 Stover Nut: CE-92501A440
