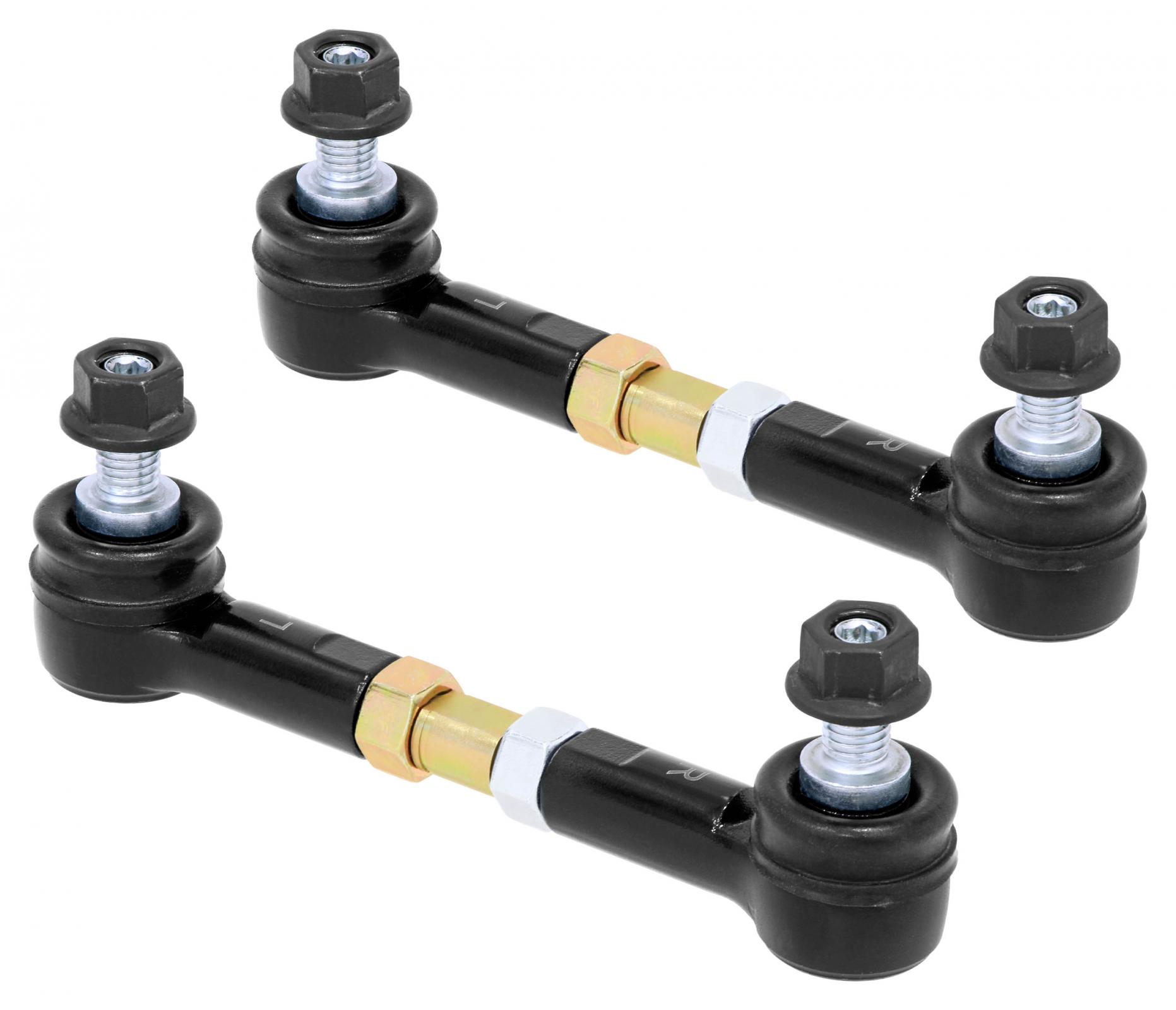

Adjustable Sway Bar End Link Kit (3 1/2 in. Long Rods w/ Sealed Rod Ends and Jam Nuts) RockJock 4x4

This RockJock Adjustable Sway Bar End Link Set features 3 1/2 in. long link rods with 1.40 in. of 1/2 in.-20 LH thread and 1.40 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.

The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.

Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.

Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.

Kit Fits:

• (Included in) 2021-Up Bronco Front Antirock Sway Bar Kits
• Universal Use

Kit Includes:

• (2) 3 1/2 in. End Link Rods (gold)
• (2) 1/2 in.-20 LH Sealed Rod Ends
• (2) 1/2 in.-20 RH Sealed Rod Ends
• (2) 1/2 in.-20 LH Jam Nuts
• (2) 1/2 in.-20 RH Jam Nuts

Gold Rod Specs:

• 3 1/2 in. Long
• 1/2 in. Diameter
• 1/2 in.-20 LH Threads - 1.40 in. Long
• 1/2 in.-20 RH Threads - 1.40 in. Long
• Center Smooth Area - .700 in. Long
• Wrench Flat accepts a 1/2 in. wrench

Adjustment Range:

• Closed - At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 6.215 in.
• Extended - Uncut rods with ends installed safely adjust out to 7.140 in. C-C

Notes:

• These are the links that we include in our 2021-up Bronco front Antirock Sway Bar Kit
• Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms.
• Wrench flats: gold rods - 1/2 in. wrench, sealed rod ends - 18mm wrench, jam nuts - 3/4 in. wrench
