Whether you are hitting the trail or ripping through the desert, the Trail-Gear Rear Performance Bump Stops will allow you to get the most out of your vehicles suspension by eliminating harsh bottom outs. Our unique automatic velocity sensitive valving technology will save you time by eliminating the need to adjust shim packs.
Fully rebuildable and tunable, Trail-Gear Bump Stops have proven to be superior. With cycle testing to over 1 million cycles in the lab, as well as enduring the punishing terrain during the most rigorous off-road endurance race in the world, King of the Hammers, we can say with confidence that these bump stops will improve your overall off-road experience for years to come.
Trail-Gear bump stops help prevent damage from occurring to expensive shocks and suspension components by absorbing impacts at full suspension compression. Trail-Gear bump stops can be tuned by varying the amount of nitrogen charge through the Schrader valve on top.
The handling and control you will experience with the Trail-Gear Rear Performance Bump Stops is unparalleled. Whether you are an experienced overlander, rock crawler, or desert racer, this product is sure to improve your overall off-road experience. There is nothing like riding on Trail-Gear Performance Bump Stops!
The 2 inch Stroke kit is recommended for spring-under applications. The 3 inch Stroke kit is recommended for most stock Tacoma applications. We recommend the 4 inch Stroke kit for lifted trucks and trucks with extended rear wheel travel.
Features:

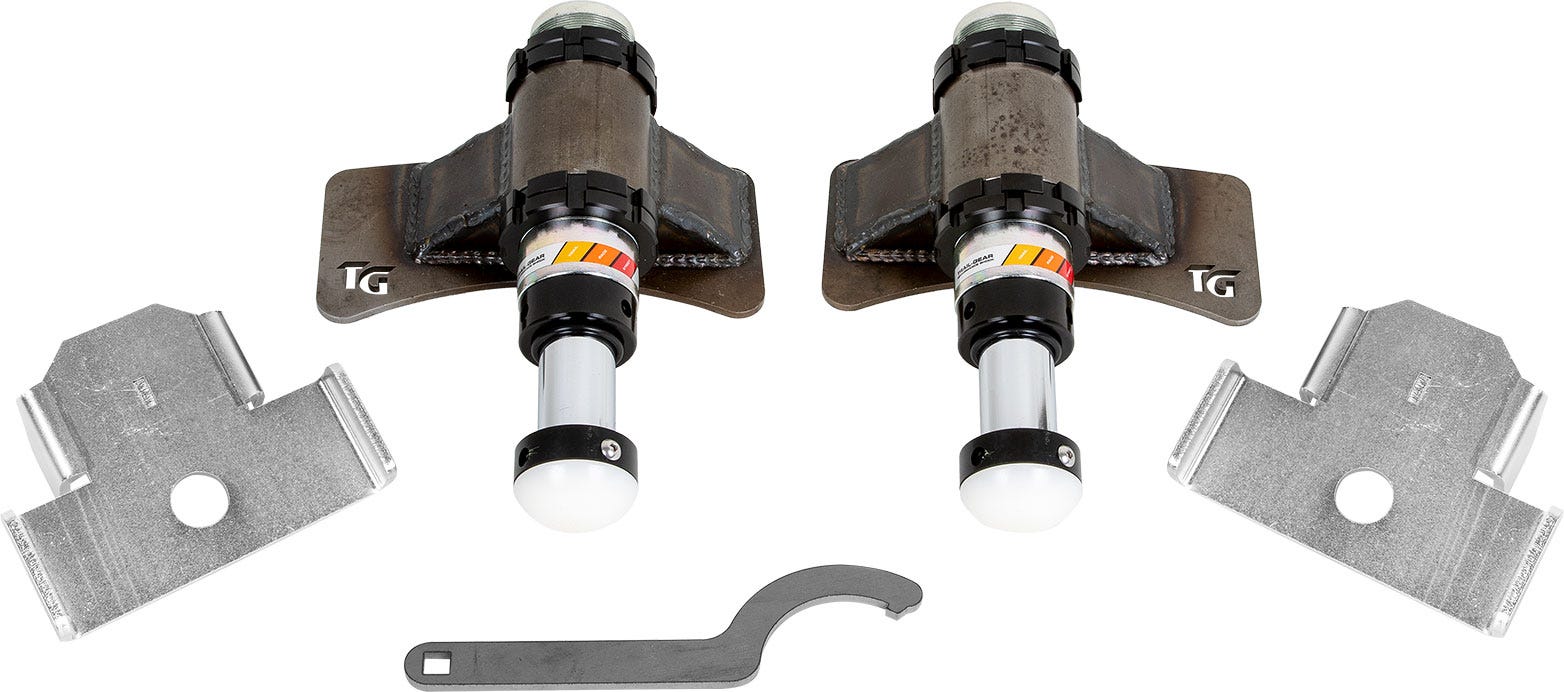

- 1995-2004 Tacoma Rear Performance Bump Stop Kit - 2 Inch Stroke
- Fully Rebuildable
- 2 inch Diameter Zinc-Plated Steel Body
- 1-1/4 inch Hard-Chromed and Polished Shaft
- Ships pre-charged to 200psi this is a great starting point for tuning your suspension.
- Tunable by adjusting the nitrogen pressure and or oil volume.
- Viton seals and O-rings.
- Threaded body with anodized aluminum locking rings allows quick and easy adjustment.
- O-Ring on shaft indicates amount of travel.
- Delrin contact pad for smooth and quiet operation.
- Available travel options 2 inch, 3 inch or 4 inch
- Schrader valve with cap for quick and easy pressure adjustment.
- 3/16 inch thick ASTM A36 Steel mounting brackets
- Zinc-plated 3/16 inch thick ASTM A36 Steel striker pad
- Welding required for installation
