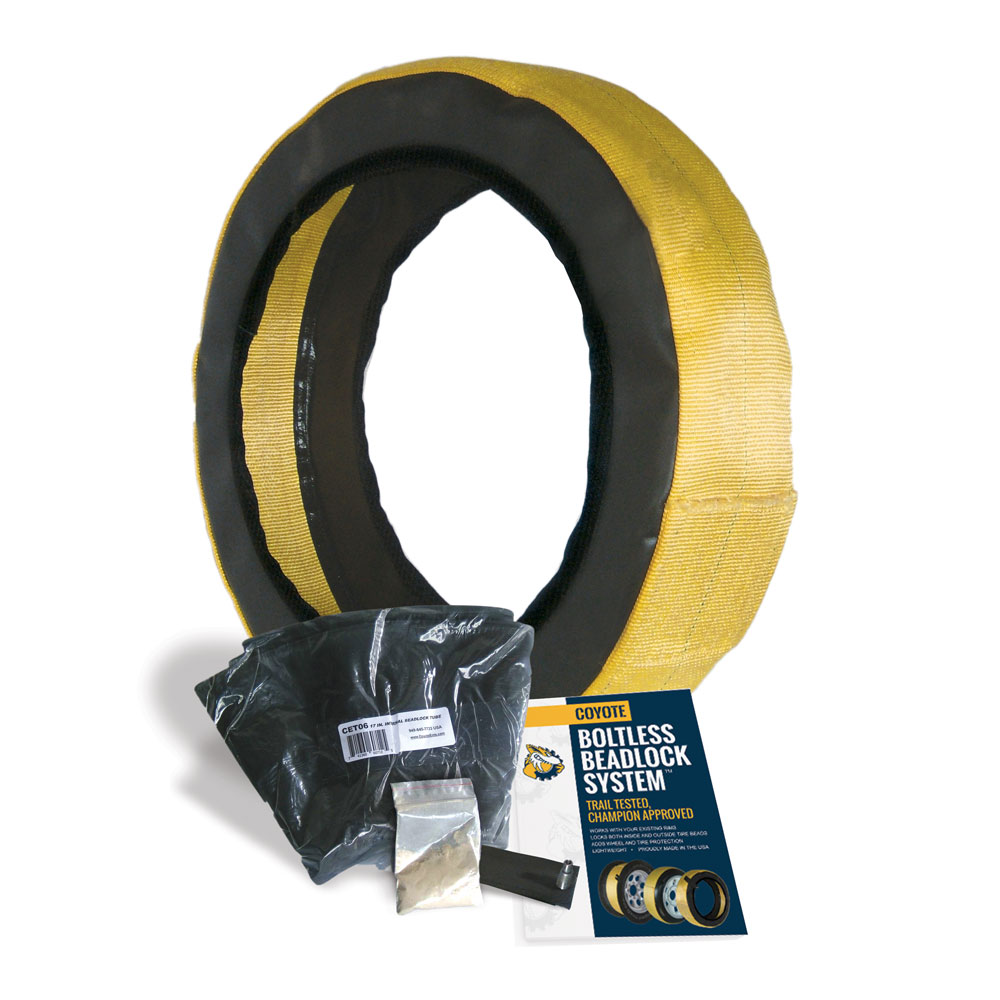

15 Inch Beadlocks 15 Inch Diameter X 7 to 10 Inch Wide Wheel Coyote Beadlock

The Coyote Boltless, Dual, Internal Pneumatic Bead Lock is a tire within a tire. It divides the tire’s air chamber into two separate compartments and thus has two valve stems. One is for the tire and the other for the beadlock. Think of the beadlock Case as a mini-tire and hence its parts are named the same.

There is a Tread, two Sidewalls and two Beads. A heavy duty inner tube within the bead lock Case forces the Case to take shape and do its job. The inner tube is inflated up to 50 PSI and forces/pinches both tire beads against the wheel.

On a 15 inch wheel, we calculate that there is over 9,000 pounds of force holding the beads against the wheel! This is in addition to the force required to pop the beads over the wheel’s bead bumps. Through a standard valve stem fitted with an Air Channel, the balance of the tire can be inflated or deflated to any pressure less than 45 PSI.

Coyote Boltless Beadlocks have several advantages over conventional, mechanical beadlocks.

• You can use your existing rims, conventionally beadlocked or not.
• They lock both the outside and inside tire beads to the wheel. So, contrary to what happens with conventional, mechanical beadlocks, this prevents the inside tire bead from burping air.
• They provide a 3 inch high, 50 psi bump stop that reduces wheel and tire damage in demanding applications like Baja and Hammer racing.
• There are no balance issues.
• There are no DOT issues. They are street legal.
• There are no bolt circle torque maintenance requirements.
• They give you a limp flat capability to get back to camp or off to the side of the trail for a safer setting to change to your spare.
• Adds Wheel And Tire Protection
• Lightweight - No Balance Issues
• Five Year Warranty
• Proudly Made In America
