Trail-Creeper 2.28 Crawl Box 23-Spline Input/23-Spline Output, Forward Shift, 4.5 Inch Offset, New Gears Trail Gear

Transfer cases are made from two basic sections - the reduction section and the 4WD section. To build a dual transfer case, two reduction boxes are bolted back to back with a dual case adapter. These two are then bolted to a 4wd section.

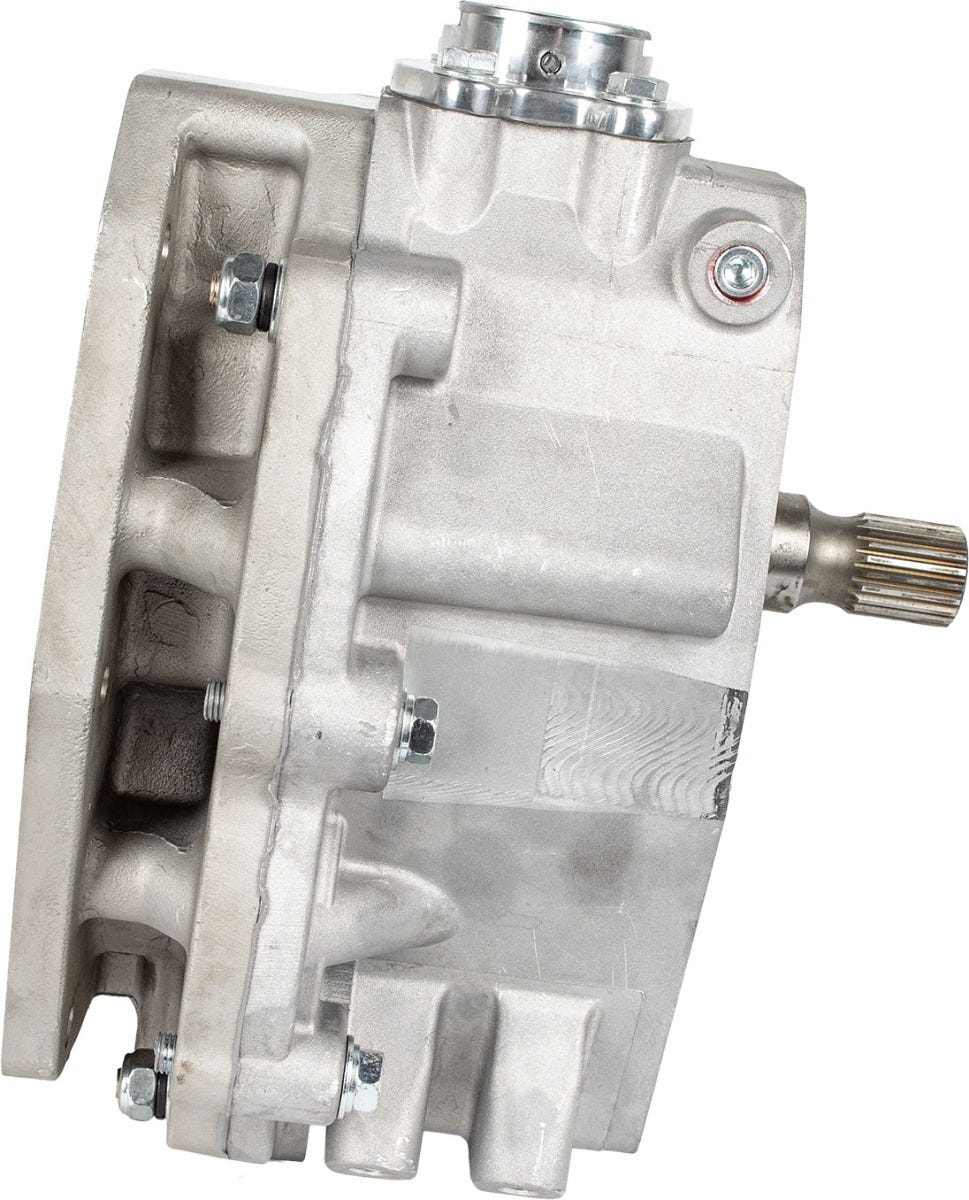

The Trail-Creeper shown is ready to bolt onto the front of a top shift style, gear driven Toyota transfer case. Available with New 21-spline or 23-spline input and output gears. Units are completely rebuilt and inspected.

Low range gear ratio is 2.28. Floorboard and drive shaft modifications are required for dual transfer case installation. No core charge. One year warranty.
Features:

• Trail-Creeper 2.28 Crawl Box 23-Spline Input/23-Spline Output, Forward Shift, 4.5 Inch Offset, New Gears
• Ready to bolt onto the front of a top shift style, gear driven Toyota transfer case
• Available with New 21-spline or 23-spline input and output gears
• Units are completely rebuilt and inspected
• Low range gear ratio is 2.28
• Fits: 1979-1995 Toyota Pickup and 1985-1995 Toyota 4Runner
